Garosa 30A RV Power Inlet Outlet Shore Kit, NEMA L5 30P Male Connector and L5 30R Female Connector with Locking Cover, for RV Trailer Van Caravan Marine Boat

Spec: Item Type: RV Power Inlet Outlet Shore Kit Material: PVC, Brass Rated Current: 30A Plug Specification: NEMA L5-30R Socket Specification: NEMA Installation Steps: 1. Position Determination: Select a suitable location on the Cover​, avoid any pipes or other obstacles, and ensure that all power tools are properly grounded. 2. Marking and Cutting: Use a hole saw to ​ and cut holes with a diameter of 2-7/8in on the Cover​. 3. Placement Inlet: Place the air inlet into the opening and use it as a model to ​ the location of the installation hole, then use a 1/8in drill bit to drill the installation hole. 4. Remove the Rear Baffle: Remove the 2 screws at the front end of the air inlet and remove the rear baffle. Wiring Specifications: Peel off the 3/4 inch insulation layer from the wire end, ensure the wire cores are clean and non corrosive. If necessary, cut off the corrosive part and re strip the wire. Wiring Color Code: 1. 125V 3 Wire System: Black: Live wire; White: Neutral wire; Green: Equipment ground wire 2. 125/250V 4 Wire System: Black: Live wire (125V); Red: Live wire (125V); White: Neutral wire; Green: Equipment ground wire 3. Insert the wire into the terminal hole, tighten the terminal screw to a torsion of 20in-lb, and ensure that there is no insulation remains. Wiring: Thread the internal wiring through the box opening, use at least 10 AWG/3c wires, do not use finer wires to prevent overheating and potential electrical fires. Stripping and Connecting: Peel off 3/5in on the end of the wire to ensure it is clean and non corrosive. Insert the wire into the opening behind the air inlet according to the color code and tighten the terminal screw. Organizing and Fixing: Thread the wires through the rear baffle and pressure reducing device, slide the rear baffle behind the air inlet, tighten the pressure reducing screw, Package List: 1 x NEMA L5-30R

• [High Performance 30a Rating] Designed for heavy duty use, this power inlet outlet shore kit boasts a 30a rated current, making it perfect for rvs, trailers, ships, caravans, and . its robust construction ensures it can handle the demands of outdoor and marine environments, providing consistent power delivery.
• [Durable and Reliable] Built to withstand harsh conditions, this rv power inlet outlet shore kit features a twist lock design for a secure connection. the heavy duty materials and precise engineering ensure reliable performance in all weather conditions, making it a trusted choice for outdoor power needs.

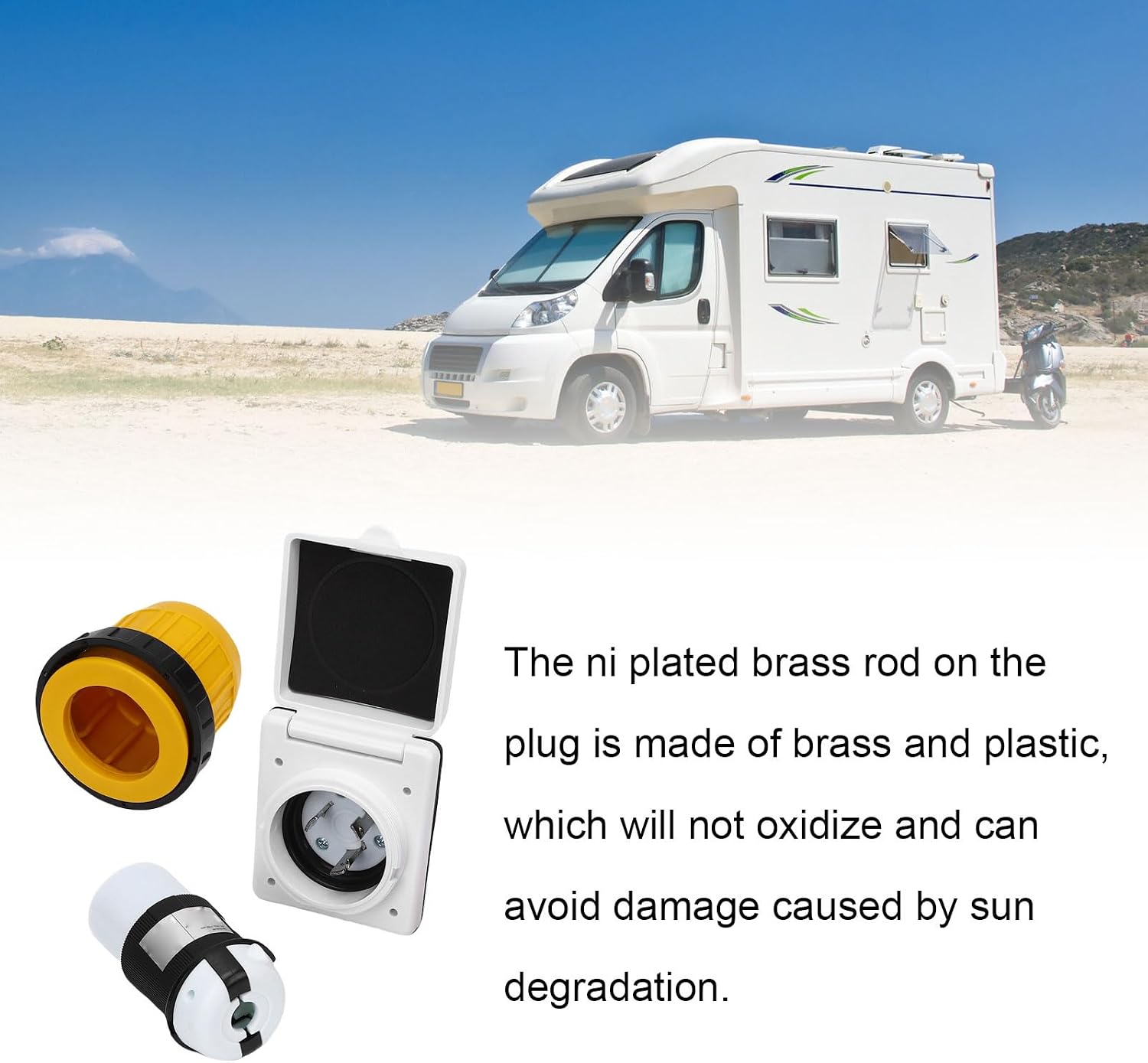

• [Safety First Design] The locking plug and connector set is crafted from heavy duty pvc material, which is both high temperature proof and Mystical/Fantasy retardant. this ensures maximum safety during operation. the ni plated brass rod on the plug resists oxidation and sun degradation, offering long lasting durability.
• [Easy Installation] Color coded terminals simplify the wiring process: green for ground wire, black for live wire, and white for neutral wire. compatible with 10 8awg wires, this kit is designed for hassle free installation. the clear color coding reduces the of errors, making it user friendly even for beginners.
• [Complete Rv Power Kit] The rv power inlet outlet shore kit includes everything you need for a secure and reliable power connection. it features a nema l5 30p male connector, nema l5 30r female connector, and a durable power cord protective cover with a locking . this all in one kit ensures a seamless installation process.
